legendkit.colorart

class legendkit.colorart(mappable=None, cmap=None, norm=None, *, ax: Axes = None, alpha=None, values=None, boundaries=None, flip=False, spacing='uniform', orientation='vertical', ticks=None, format=None, tick_width=1, tick_size=0.25, tick_color='white', ticklabel_loc='auto', ticklocation='both', width: float = None, height: float = None, borderpad: float = None, textpad: float = None, borderaxespad: float = None, prop=None, fontsize=None, title=None, title_fontsize=None, title_fontproperties=None, alignment='left', loc=None, deviation=0.05, bbox_to_anchor=None, bbox_transform=None, rasterized=True)

Axes-independent colorbar

Most of the time, it’s safe to use colorart() as a drop-in replacement for colorbar().

Parameters:

mappableScalarMapping

The mappable whose colormap and norm will be used.

normNormalize

The normalization to use.

cmapColormap

The colormap to use.

axAxes

The axes to draw colorbar.

alphafloat

Control the transparency

values

boundaries

flipbool

Flip the colorart so the colormap is reversed visually (low values at top for vertical, right for horizontal).

orientation{‘vertical’, ‘horizontal’}

The orientation of colorart.

tickslist of ticks or Locator

formatstr or Formatter

tick_widthfloat

The width of tick.

tick_sizefloat

The length of tick.

tick_colorcolor

The color of tick.

ticklocation{‘both’, ‘left’, ‘right’, ‘top’, ‘bottom’}

The location of the colorbar ticks.

widthfloat

The width of colorart

heightfloat

The height of colorart

borderpadfloat, default: rcParams[“legend.borderpad”]

The fractional whitespace inside the colorart border, in font-size units.

textpadfloat, default: rcParams[“legend.handletextpad”]

The space between label and the colorart

borderaxespadfloat, default: rcParams[“legend.borderaxespad”]

The pad between the axes and colorart border, in font-size units.

propFontProperties

The font properties of the colorart.

fontsizefloat

The fontsize

titlestr

The title of colorart

title_fontsizefloat

The fontsize of title

title_fontpropertiesFontProperties

The fontproperties of title

alignment{‘center’, ‘left’, ‘right’}, default: ‘center’

The alignment of the colorart and title.

locstr

Apart from the default location code, you can add ‘out’ as prefix to place the legend ouside the axes. See all available options.

deviationfloat

The space between colorbar and axes if place outside

bbox_to_anchor

bbox_transform

rasterizedbool

Whether to rasterize the colorart, reduce file size in vectorized backend.

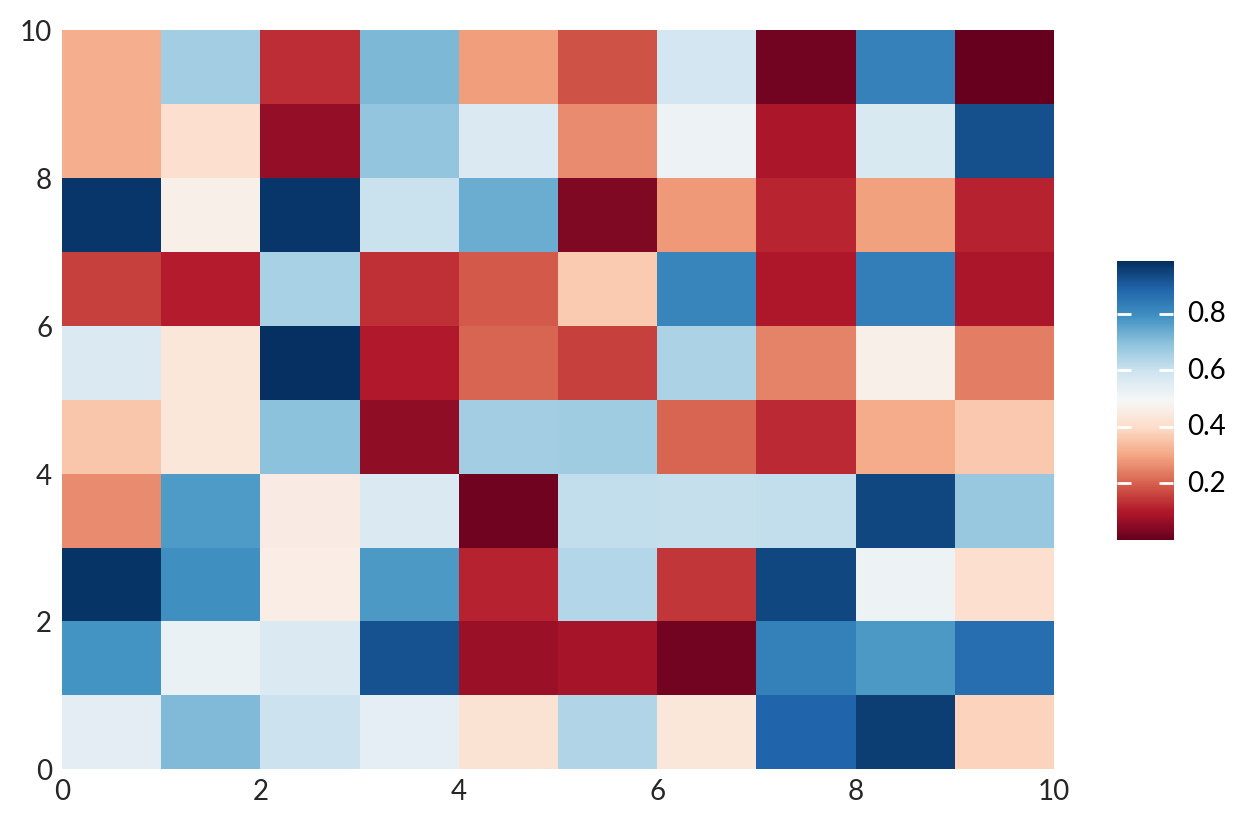

Examples

>>> from legendkit import colorart
>>> data = np.random.rand(10, 10)
>>> mp = plt.pcolormesh(data, cmap="RdBu")
>>> colorart(mp)
